New Universal Octal PCB and Ceramic Tube Socket Kit
Product Description

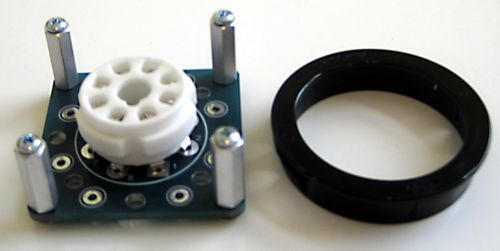

The new Universal Octal tube socket and PCB kit allows use to any octal tube and wire it up as you please. The board is small, 2 by 2 inch, that has been designed to hold a single tube socket and offers eight solder pads for connecting the tube up to the rest of your circuit.
Many like to see tubes protrude from the chassis top panel, like missiles leaving their silos. These boards help make that possible. Each PCB comes with a ceramic tube socket and four sets of aluminum hex standoffs (0.75in or 0.5in) and rubber O-rings and screws. The PCB materiel is made in the USA and thick (0.93in) and tough, heavy 2 oz copper traces, so there is no chance that it will bend, as the tube is pulled from or pushed into its socket.
Kits include PCB, eight rubber O-rings, eight screws, one ceramic octal tube socket, one Heyco black-plastic 2 inch hole snap bushing, which converts raw-edged holes to smooth, neat holes.
Many like to see tubes protrude from the chassis top panel, like missiles leaving their silos. These boards help make that possible. Each PCB comes with a ceramic tube socket and four sets of aluminum hex standoffs (0.75in or 0.5in) and rubber O-rings and screws. The PCB materiel is made in the USA and thick (0.93in) and tough, heavy 2 oz copper traces, so there is no chance that it will bend, as the tube is pulled from or pushed into its socket.
Kits include PCB, eight rubber O-rings, eight screws, one ceramic octal tube socket, one Heyco black-plastic 2 inch hole snap bushing, which converts raw-edged holes to smooth, neat holes.
